Description

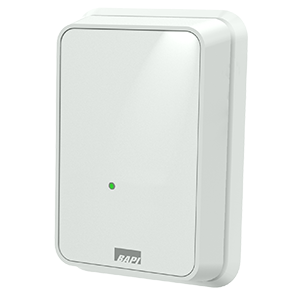

The BAPI-Stat “Quantum” Carbon Monoxide Sensor features a modern enclosure style with green/red status LED. It has a 0 to 40 ppm CO measurement range with a 30 ppm relay/audible alarm trip level. The relay is field selectable for normally closed or normally open, and the CO output level is field selectable for 0 to 5V, 0 to 10V or 4 to 20mA.
The green/red LED indicates unit status of normal, alarm, trouble/service or test. The side pushbutton places the unit into test status to verify audible alarm
and LED operation. The sensing element has a typical life of 7 years.
• 0 to 40 ppm CO Measurement Range
• 30 ppm CO Relay Trip Level with Audible Alarm
• Field Selectable 0 to 5V, 0 to 10V or 4 to 20 mA Output
• BAPI-Stat “Quantum” Enclosure with LED Status Indication
• Optional 60mm Mounting Base for European Style Junction Boxes
