Description
Clamp-On Strap and Spring-Loaded Strap sensors are designed to monitor water temperature in retrofit or filled pipe applications. Both units measure the water temperature by sensing the surface temperature of the pipe.

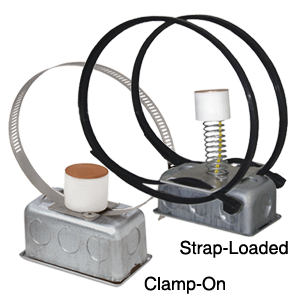

Clamp-On Strap — This unit has a bendable copper sensing plate and an adjustable hose clamp to fit pipes up to 4.5”. It is available with a available with a J-Box or a BAPI-Box 4 enclosure.
Spring-Loaded Strap — The spring loaded sensing pad is held against the pipe through a hole cut in the insulation. It can be used with pipes up to 14.5” with up to 2” of insulation. It is available with a J-Box or a BAPI-Box 4 enclosure.
